In a JavaScript ES module, every top-level expression falls, at least indirectly, into one of the two following categories: exports or side-effects (sometimes both).

• exports are values (constants, functions, classes…) that are explicitly exported to allow their usage outside of the module itself
• side-effects are expressions having observable effects other than reading their arguments and returning a value (ex: mutating the window object, triggering network requests, logging to the console…)

Code that does not fall into one of these categories can be considered dead code.

// Exports
export const greeting = "Hello";
export function sayHello(name) {
  return `${greeting}, ${name}`;
}

// Side-effects: modifying global state and logging
console.log("Module loaded!");
window.customProperty = "I'm a side-effect!";

// Internal logic indirectly used within exports or side-effects
const exclamation = "!"; // Not exported but used
function addPunctuation(message) {
  // Only used within this module
  return message + exclamation;
}

// Using internal logic in exported function
export function greetWithExclamation(name) {
  return addPunctuation(sayHello(name));
}

// Dead code
function unusedFunction() {
  return "I'm dead code!";
}

Naturally enough, one would want such unused code to be removed when it is built; that’s where bundlers come in: part of their job is to remove dead code from the sources they are given, or more precisely, not to include it: this is called tree-shaking.

Let’s take a closer look at how this is done.

Live code inclusion

Tree-shaking is a dead code elimination (DCE) technique popularized by the Rollup bundler project. While common DCE techniques consist of applying optimizations and removing code from a final program, tree-shaking is about building a final program by only including live code.

Let’s take the example of the following program: it consists of three ES modules, a.js, b.js and index.js that is also the entry point.

// a.js
export function foo() {
  console.log("Hello from foo!");
}
window.WORD = "pizza";

// b.js
export function bar() {
  console.log("Hello from bar!");
}
export function baz() {
  console.log("Hello from baz!");
}

// index.js
import { foo } from "./a.js";
import { bar, baz } from "./b.js";

console.log(window.WORD);

foo();
bar();

As you probably noticed, the index.js entry point imports foo from a.js and bar and baz from b.js, but doesn't uses baz. As baz is never used anywhere in the program, it is dead code.

Identifying dead code

Ok cool, but how does the tree-shaking algorithm come to the conclusion that a piece of code is dead?

By making an abstract syntax tree (AST) out of the input program using a parser (Acorn in the case of Rollup and Webpack). Once the AST is created, the tree-shaker is now able to create a dependency graph in order to identify what each module is exporting, importing, and using: this is called dependencies resolution.

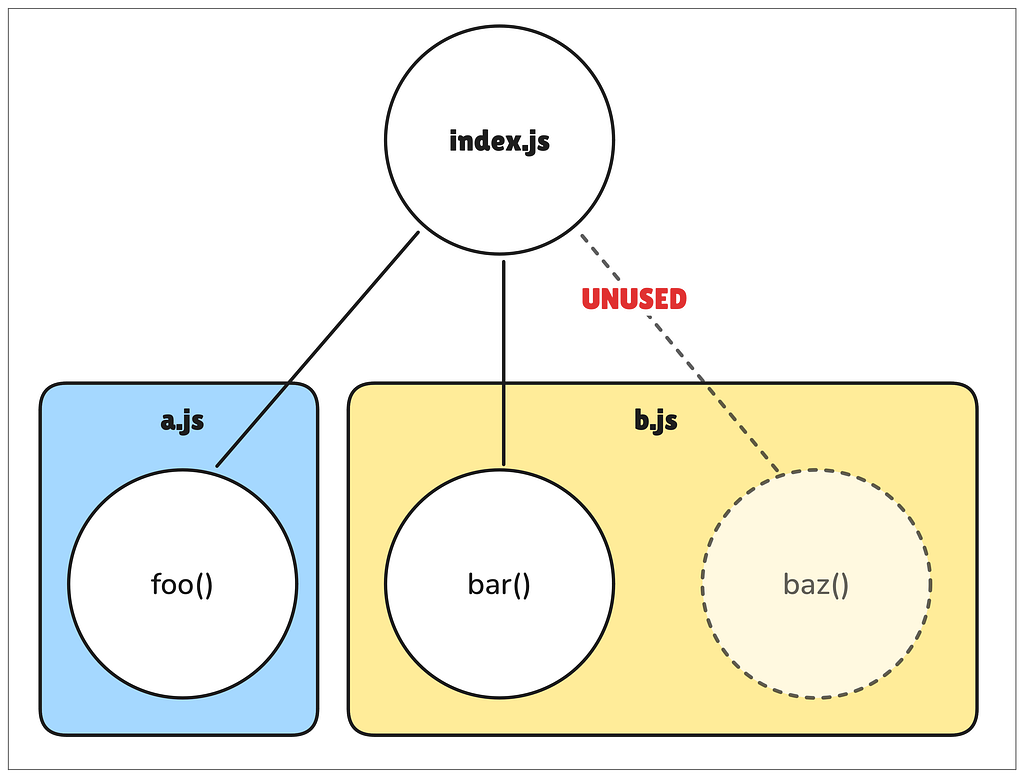

For example, the (really simplified) dependency resolution of the previous program could be represented as follows:

Explore the actual AST of the program here

Now that it has a dependency graph, identifying live code is pretty straightforward for the tree-shaker:

• code that is directly or indirectly imported and used by the entry module is live
• code that has side-effects is live
• remaining code is dead

So the tree-shaken code from our example code would be:

// from a.js
window.WORD = "pizza";

// from index.js
console.log(window.WORD);

console.log("Hello from foo!");
console.log("Hello from bar!");

Easy, right?

In this case, yes. But can all side-effects be identified by the tree-shaker? Not really. As we’ll see, the dynamic nature of JavaScript makes some side-effects hard to detect.

Maintaining side-effects

Fundamentally, side-effects are the reason why a program exists: accepting inputs from a user, writing to a console or to a disk, making network calls, adding elements to the DOM… without all of it, programs are useless really. For this reason, tree-shakers must be absolutely sure not to accidentally remove them, which could lead to broken programs. They do so in two different ways:

• by detecting them
• by including code that might hide one

Tree-shaking is an optimization that is made statically, which means the tree-shaker can rely only on the AST to detect side-effects: this is sufficient most of the time, but let’s not forget that JavaScript is a dynamic language, which means side-effects could hide in code that is not statically analyzable.

Let’s take the following program for example:

const sum = "4" + two;

console.log("hello world!");

As you can see, the value assigned to sum isn't used anywhere, and so should be removed by tree-shaking… but it can't be:

• what if two doesn't exist? A ReferenceError would be thrown, which is a side-effect
• what if two is an object with a toString() method? It would be invoked by joining it with a string, which could be a side-effect

In such cases, tree-shaking algorithms have no other choice than to be conservative and not to remove the code to maintain every potential side-effect, although it’s maybe unused. The tree-shaken code would then be:

// only the `sum` assignation could be removed safely
"4" + two;

console.log("hello world!");

You can experiment different scenarios online using the Rollup REPL

In a “final” application or in internal code (your project’s modules), such unused exports or useless top-level side-effects are pretty rare, and various well-known tooling exist to statically catch them (ESLint, TypeScript, ts-unused-exports, …), but in the case of dependencies’ code (modules in node_modules), every export or top-level side-effect is potential dead code: this depends on the end program using it.

In fact, tree-shaking for external code is not as straightforward.

Tree-shaking dependencies

No matter if it is internal code or external dependencies code, bundlers will always try to tree-shake the code they are given, but will adopt a different strategy depending on the provenance:

• For internal code: they’ll be aggressive by default since developers have full control on it
• For dependencies code: they’ll be conservative by default since they come from third parties, and as any import of any module could hide a side-effect

It means that the same exact code will be tree-shaken differently depending on whether it is internal code or code from external dependencies.

So the following will be aggressively tree-shaken, fully statically analyzed and everything unused won’t make it to the final bundle:

import { add } from "./my-local-lodash";

// only `add` will be in the final bundle

On the other hand, by default, the following will be conservatively tree-shaken: even unused imports will be kept as their evaluation could hide side-effects or “pollute” other modules, which can’t be statically analyzed without error margin:

import { add } from "lodash-es";

// other modules from "lodash-es"
// will also be in the final bundle

To allow library authors to tell bundlers how to tree-shake their code, bundlers came up with a specific package.json field: "sideEffects". If not set, the value of this field is true, which makes the bundler consider that any module import can have side effects, However, if explicitly set to false, it will make the bundler treat the external package's modules exactly like internal code.

{
  "name": "lodash-es",
  "sideEffects": false,
  "..."
}

import { add } from "lodash-es";

// "sideEffects": false so
// only `add` will be in the final bundle

So, in order for a node_modules dependency to be correctly tree-shaken, it should:

• provide an ESM build: while ES Modules can be evaluated statically (imports and exports being exclusively top-level) and so can be tree-shaked, CommonJS module are hardly tree-shakeable due to their dynamic nature
• have added a "sideEffects" field to its package.json to hint the bundler about how to behave while tree-shaking

Key takeaways / TL;DR

• in a JS module, everything is either an export, a side effect, or dead code
• tree-shaking is live-code inclusion, not dead code elimination

As a library author:

• provide an ESM build as tree-shaking of CommonJS modules is extremely limited
• set a "sideEffects" field in your package.json to prevent bundlers being too conservative while tree-shaking your package
• avoid using default exports as they make static analysis harder

To go even further, do not assume your code will be bundled of tree-shaken at all: there are many cases where code will be used out-of-the-box without any optimization step (loading through a CDN with <script type="module">, direct runtime usage, etc…), and so, generally speaking, splitting your package in multiple entry points and keeping economy in mind won't hurt.

Hoping this article has taught you the basics of tree-shaking, visit ekino’s website and follow us on LinkedIn for more updates!
